Based on the popular OPTIMOD 5750 processor, the 5750 HD provides FM/HD1 processing and includes a second independent processing chain called HD2. It comes in a compact 1 RU design, is equipped with a high-resolution touch display, and can be controlled remotely via any HTML5 web browser.

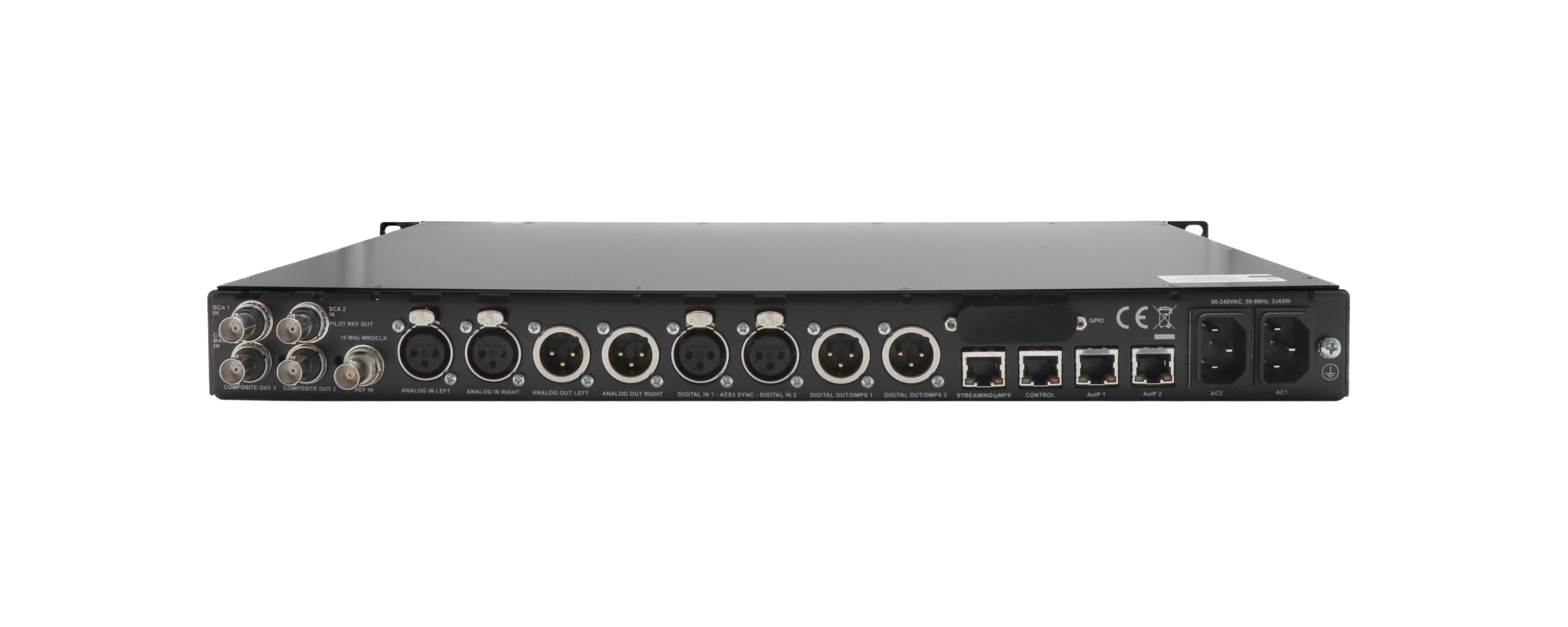

OPTIMOD 5750 HD is equipped with analog, AES3, composite and digital MPX as well as AES67/SMPTE-ST2110 inputs and outputs includes advance audio routing and Diversity Delay and can easily be integrated in any studio and transmitter environment. Additionally, optional μMPX allows a cost-effective transmission of digital MPX signals over IP.
features :
- The FM section offers four processing structures which can be selected depending on the user’s application and requirements: Five-Band, Low-Latency Five-Band, Ultra-Low-Latency Five-Band and Two-Band.
- An intelligent two-band window-gated AGC using Orban’s proprietary “master / bass” band couplingcontrols the levels subtly and unobtrusively. Where three kinds of stereo enhancement, an advanced EQ section, Enhancers and extensive kind of other parameters are available to create a signature sound.
- The “True Peak” limiter in the two HD processing chains anticipates and controls peak levels following D/A conversion, a feature now required by many broadcasters.
- The defeatable ITU BS.412 Multiplex Power Controller constrains MPX power smoothly and reliably, ensuring compliance in countries that regulate it.
- OPTIMOD 5750 HD provides ITU-R BS.1770-4 Loudness Control which facilitates compliance with modern target loudness recommendations like EBU R128 for each processed FM and HD output source if needed.
- Multiple audio input and output sources can be monitored via the front panel headphone output and the optional IP Monitoring Streaming Encoder.
- The optional Internal Audio Backup player or IP Audio Backup decoder can be used as one of the emergency fallback scenarios, but it can also be used as a main Streaming Input source like HLS
- OPTIMOD 5750 HD supports SNMP v2 and Ember+ protocol and Remote Control Interface for professional monitoring purposes and has dual power supplies with independent AC line inputs provide redundant operation to ensuring maximum uptime.
